Multiband Simulation of Quantum Transport in a Poly Type Double Barrier Resonant Interband Tunneling Diode (DBRTD)
| GaAs DBRTD | Si ITD | type II RITD | Download |
 |
 |

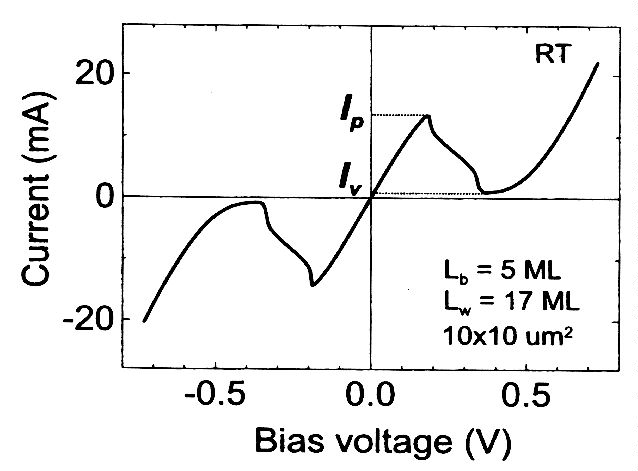

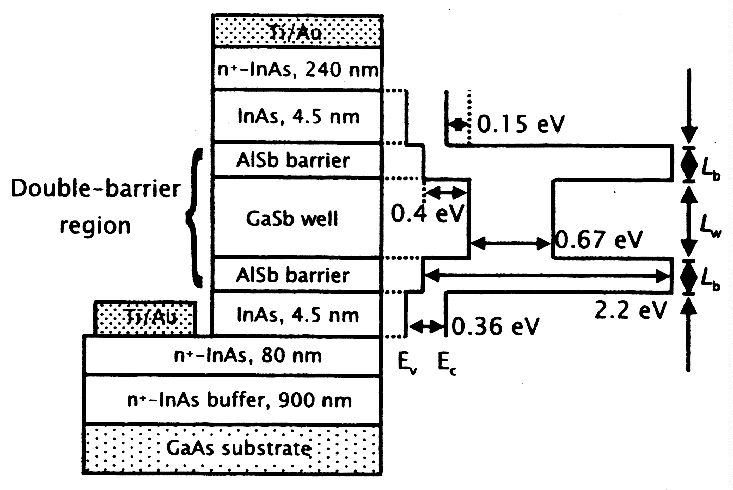

| Schematic structure of GaSb/AlSb/InAs DBRITD(left). I-V characteristics (right). AfterDr. Kitabayashi et al. (NTT). | |
 |
 |

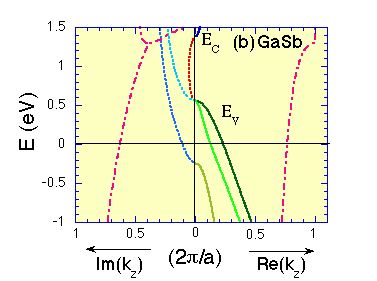

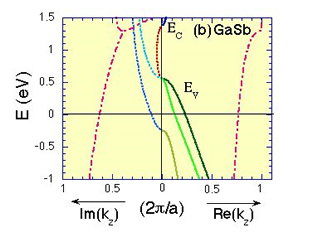

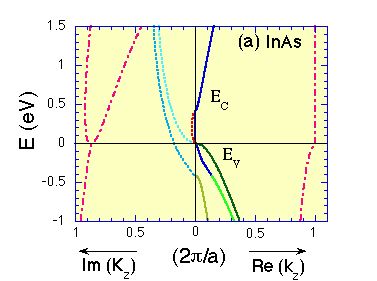

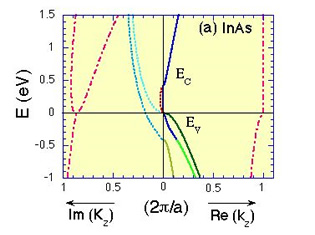

| Complex band structures of InAs (a) and GaSb(b). | |
 |
 |

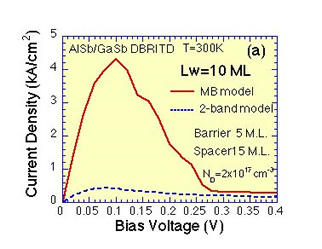

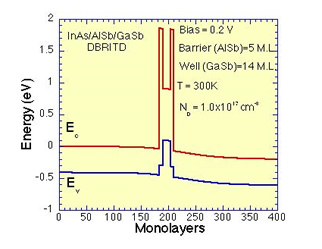

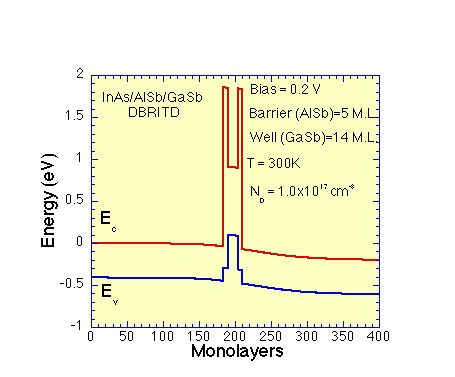

| Model structure. | I-V characteristics of the AlSb/GaSb DBRITDsimulated by the MB model(solid line) and2-band model(dotted line) where only theconduction- and the light hole bands aretaken into account. |
 |
|

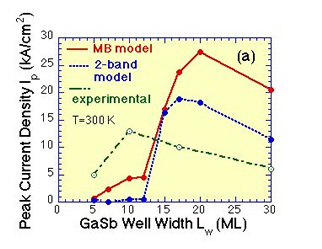

| Well width dependences of the peak currentdensity.The 2-band model cannot explainthebehavior for the Lw < 12 ML. for reference click here |
