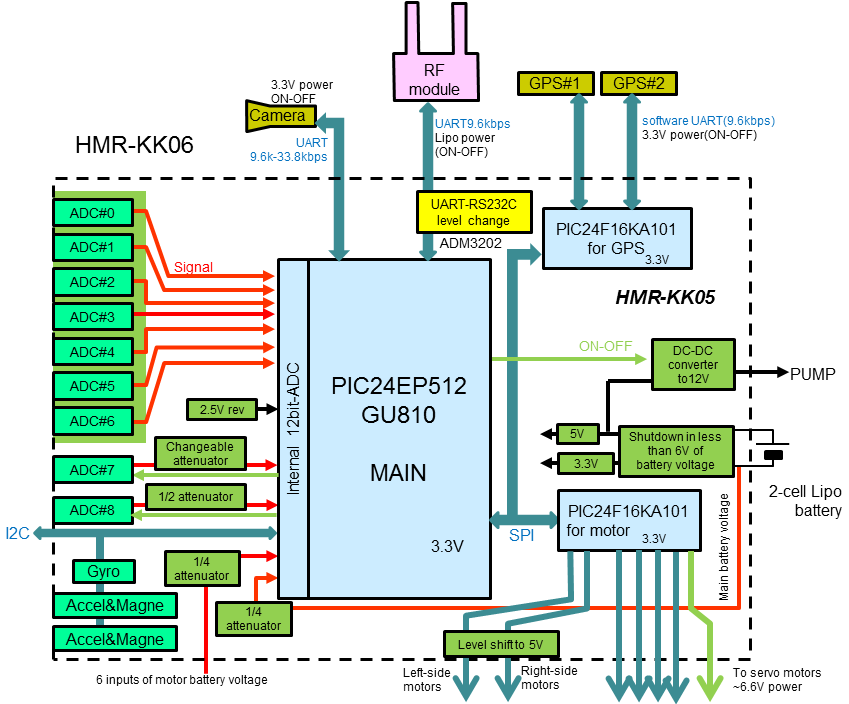

HMR-KK05からの変更点
・Main PICをPIC24EP512GU810(RAM52k)に変更
・Motor PICおよびGPS PICをPIC24F16KA101(RAM1.5k)に変更．
GPSへの接続は２つともPICのハードウエアのUARTを使用．

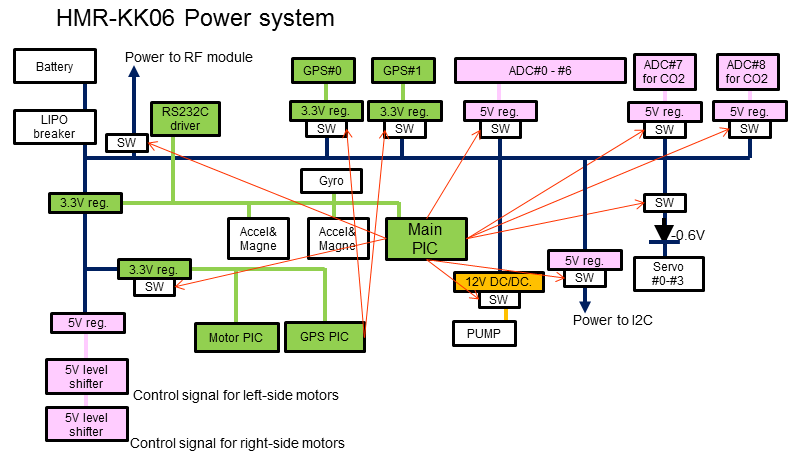

この2つのサブコンピュータは，MainPICより電源をON-OFFする．
・加速度センサーKXM52-1050を廃止

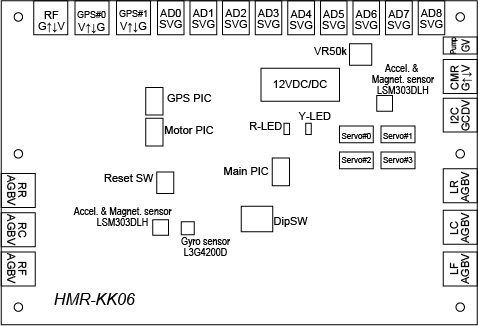

・オンボードセンサーとして加速度センサ，磁気センサ，ジャイロセンサをI2C接続でオンボード搭載
加速度＆磁気センサは LSM303DLHを2個搭載
ジャイロセンサはL3G4200Dを1個搭載
・RFmoduleへのコネクタを変更．4ピンとし，電源もここからとる．
・PICの未使用ピンは，ADを持つピンの場合，ADにセットしインプットに設定する．ADを持たないピンはデジタルアウトプットに設定する．
Port setting PortA PortB PortC PortD PortE PortF PortG
ADconverter setteing
Function setting
Non-connected pins with ADC are set as ADC and digital input. Non-connected pins without ADC are set as digital output.
!CAUTION! GPIO pins of B11 and B15 must be set as INPUT and are unusable.
| Pin | Port | ADC | Special | etc | Power | Use | Setting | Function |
| 1 | A5 | nMCLR | Vpp | Vpp | ○ | I | nMCLR Vpp | |
| 2 | A0 | AN00 | PGC2 | Vref+/CN2 | ○ | O | PowerSW of GPS#1 | |
| 3 | A1 | AN01 | PGD2 | Vref-/CN3 | AD(I) | |||
| 4 | B0 | AN02 | U2Tx | PGD1/C1IND/C2INB/CN4 | ○ | O | U2Tx to GPS#1 | |
| 5 | B1 | AN03 | U2Rx | PGC1/C1INC/C2INA/U2BCLK/CN5 | ○ | I | U2Rx from GPS#1 | |
| 6 | B2 | U1Rx | U1BCLK/CN6 | ○ | I | U1Rx from GPS#0 | ||
| 7 | A2 | AN04 | OSCI/CLKI/C1INB/C2IND/CN30 | ○ | O | PowerSW of GPS#0 | ||
| 8 | A3 | AN05 | OSCO/CLKO/CINA/C2INC/CN29 | AD(I) | ||||
| 9 | B4 | PGD3 | SOSCI/nU2RTS/CN1 | ○ | O | PGD | ||
| 10 | A4 | PGC3 | SOSCO/T1CK/nU2CTS/CN0 | ○ | O | PGC | ||
| 11 | B7 | U1Tx | INT0/CN23 | ○ | O | U1Tx to GPS#0 | ||
| 12 | B8 | SCL1 | nU1CTS/CN22 | O | ||||
| 13 | B9 | SDA1 | nU1RTS/CN21 | O | ||||
| 14 | A6 | OC1/IC1/C2OUT/INT2/CTED1/CN8 | O | |||||
| 15 | B12 | AN12 | SCK1 | HLVDIN/CTED21/CN14 | ○ | I | SCK of SPI | |
| 16 | B13 | AN11 | SDO1 | CTPLS/CN13 | ○ | O | SDO of SPI | |
| 17 | B14 | AN10 | SDI1 | Cvref/RTCC/OCFA/C1OUT/INT1/CN12 | ○ | I | SDI of SPI | |
| 18 | B15 | nSS1 | T2CK/T3CK/CN11 | ○ | I | nSS of SPI | ||
| 19 | Vss | ○ | ||||||
| 20 | Vdd | ○ |
Non-connected pins with ADC are set as ADC and digital input. Non-connected pins without ADC are set as digital output.
Non-connected pins with ADC are set as ADC and digital input. Non-connected pins without ADC are set as digital output.
CAUTION!
Outputs for the wheel motors are negative logic.
Outputs for the servo motors are positive logic
