CHIAS III Manual Online
1.11 Drawing a line along the mid-rib of the chromatid. （ Draw Line
）
Before CP measurement, zooming up the image about 3 times with the zooming
tool.
Run the macro [Draw Line] (Fig. 21), and draw segment lines interactively
along the mid-rib of the chromatid (Fig. 22).
Japanese version (containing same contents as English version)
1.11 染色分体中軸線の記入（ Draw Line ）
CP測定の準備．画面をzoomツールで拡大する(３倍程度)． Draw Lineを実行する (Fig. 21)．染色分体中軸線上に沿って，セグメントラインを手動で引く
(Fig. 22)．

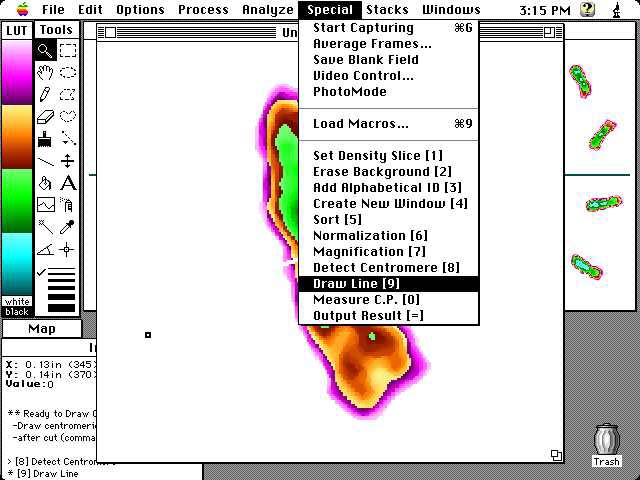

Fig. 21

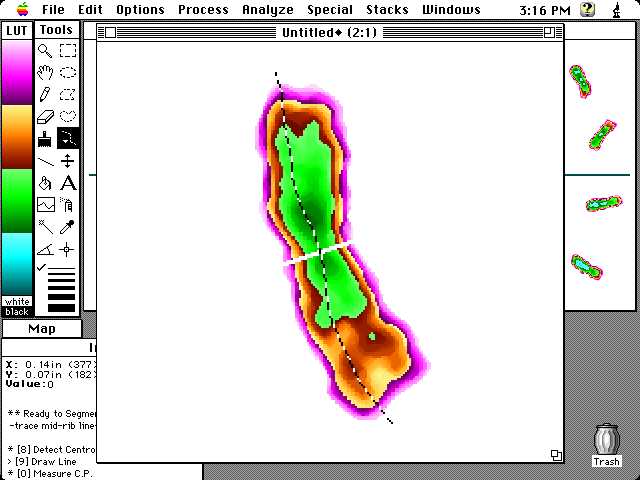

Fig. 22
