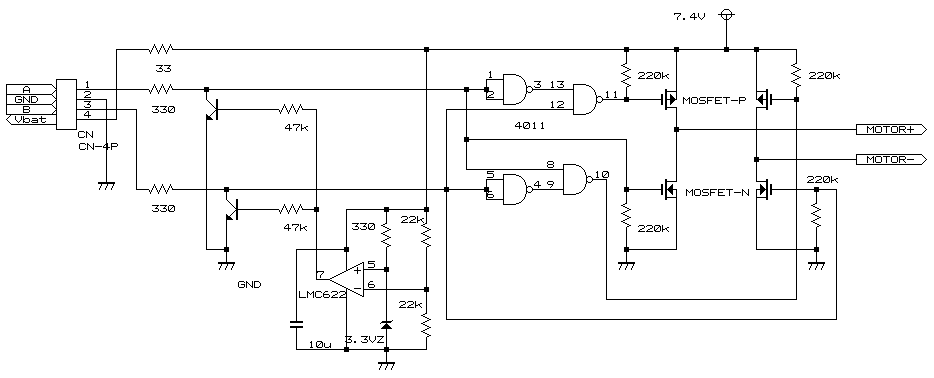

This version of motor driver prevents overdischarge of LIPO battery.
A |
B |
Action |
L |
L |
FREE |
H |
L |
REVERSE |
L |
H |
NORMAL |
H |
H |
BRAKE |
When Battery voltage is less than 6.1V, all the FETs cannot turn on regardless of voltage levels of A and B.
